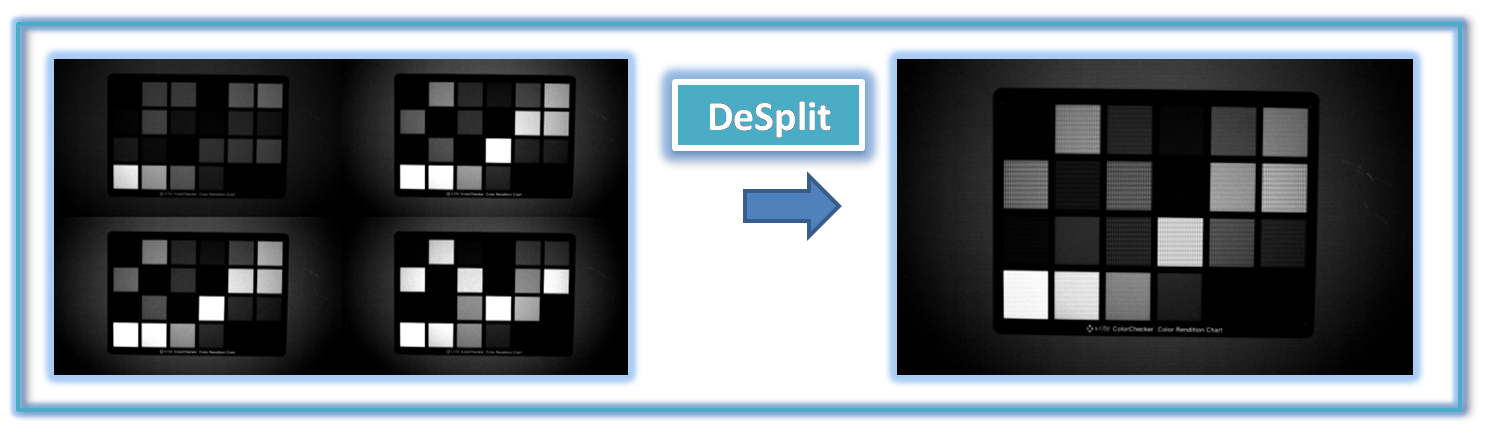

Users can merge each split channel back into a single image. This functionality is particularly useful for reconstructing images from regular Bayer patterns, such as BGGR, as well as more complex configurations like 4C or 9C patterns. By enabling both splitting and merging, this tool provides a comprehensive solution for advanced image analysis and processing.

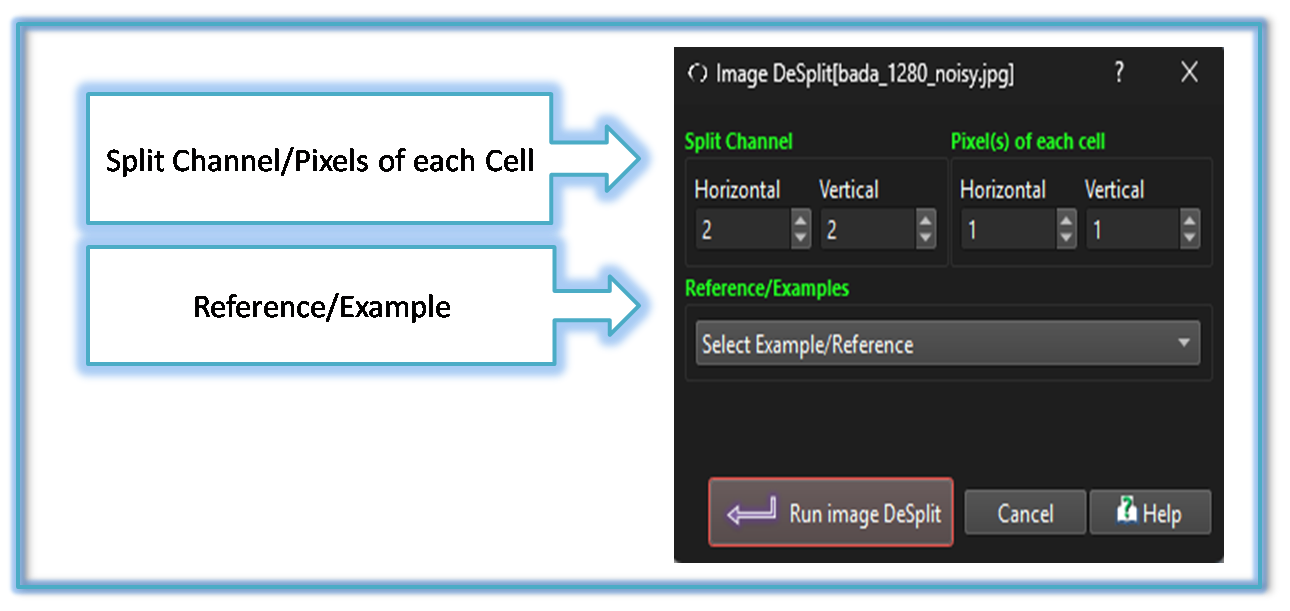

Split Channel/Pixels of each Cell

Reverses the split options in the previous section

Users can set the Horizontal/Vertical values to the number of columns and rows to desplit images

Users can duplicate and split images into a grid using this function Users can input desired number of columns (Horizontal) and rows (Vertical) for the grid

Below show example for easy understanging to input Split Channel and Pixels of each Cell

Select Example/Reference

Users can choose from a list of templates to split images for commonly used Bayer pattern image

The GIF demo below demonstrates for HV DeSplit

.
