ColorChartAnalysis -> go to [Analysis_Main]

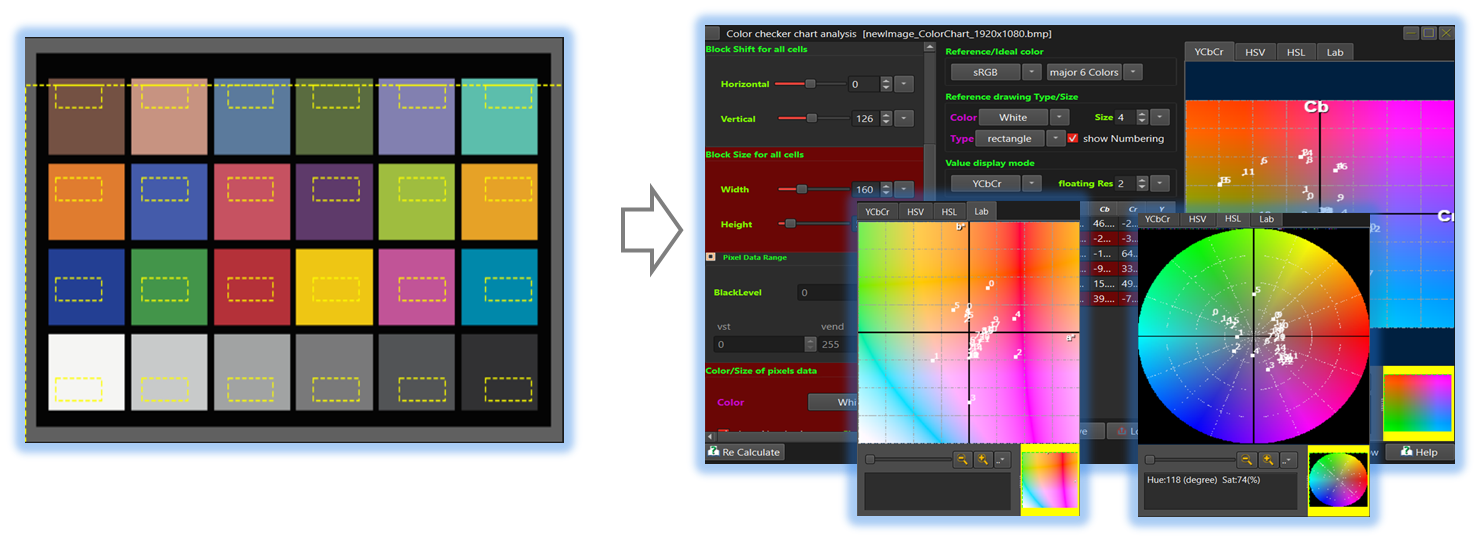

Analyzing a color checker chart is essential because it ensures accurate color reproduction in digital images. This tool provides a reliable reference for comparing and adjusting colors, ensuring consistency across different devices and lighting conditions. It is a valuable resource for photographers, videographers, and digital artists to maintain color accuracy and achieve professional-quality results. The color checker chart serves as a benchmark, facilitating precise color calibration and correction, which is crucial for producing visually appealing and true-to-life images.

• Refer to Color Matrix for color tuning or color correction.
• Refer to White/Channel Balance for Color channel Balance.
• Refer to Color Analysis for local ROI General Color analysis
• Analysis_Main (Parent Menu)

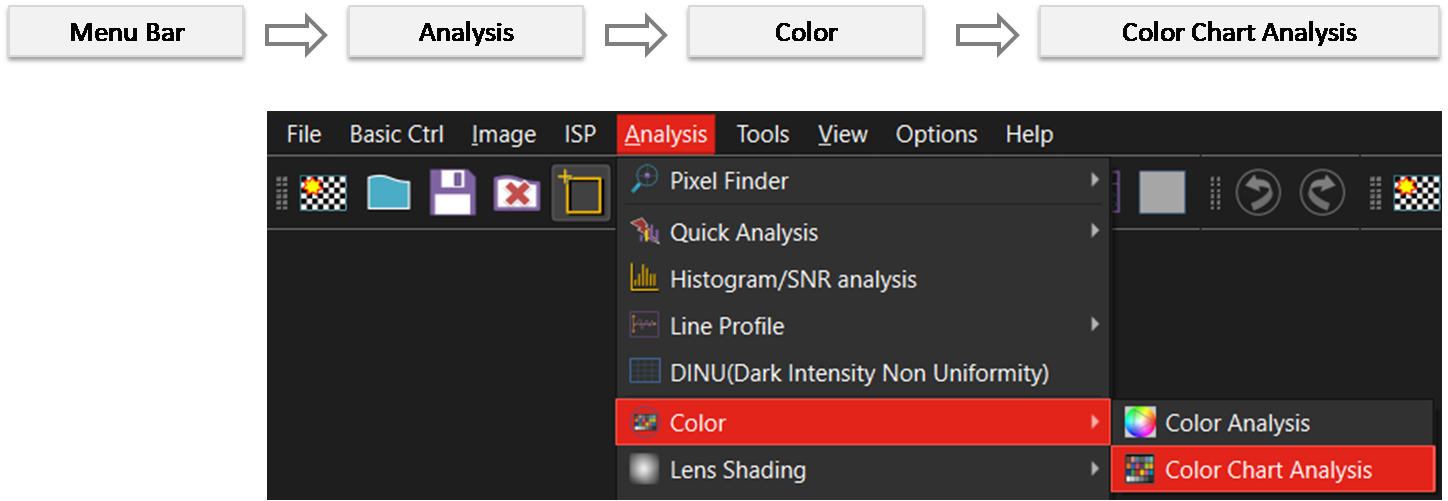

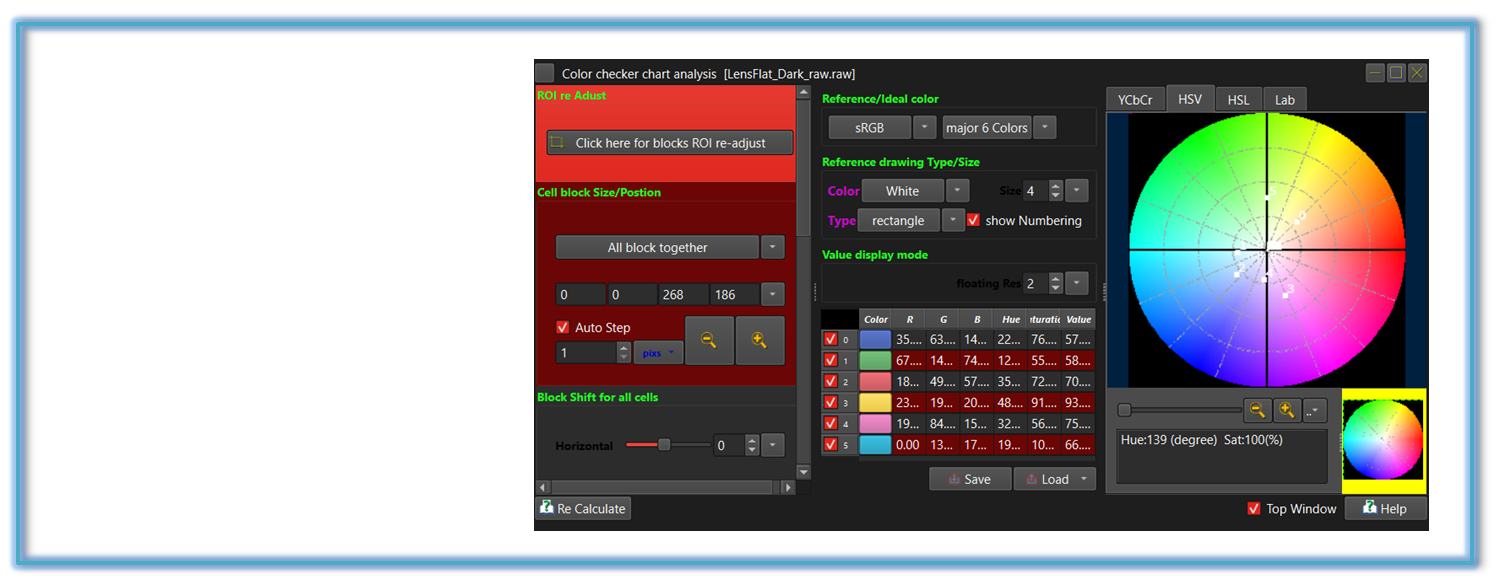

By selecting the menu options in the order shown in the image above or by choosing the toolbar icon , the ColorChartAnalysis dialog box will be showed up as shown in below picture.
For a more detailed explanation of the toolbar button or how to configure toolbar,please refer to configure toolbar

• ROI
  By allowing users to specify a Region of Interest (ROI) in addition to analyzing the entire image, the analysis speed can be increased, and the accuracy of the analysis can be improved by focusing only on the areas of interest.





• SSImXel Analysis Dialog Common Ctrl
  Through this control module, the user can access Help, close or hide the active analysis window, or set it as the top-most window. For more detailed information, please refer here.

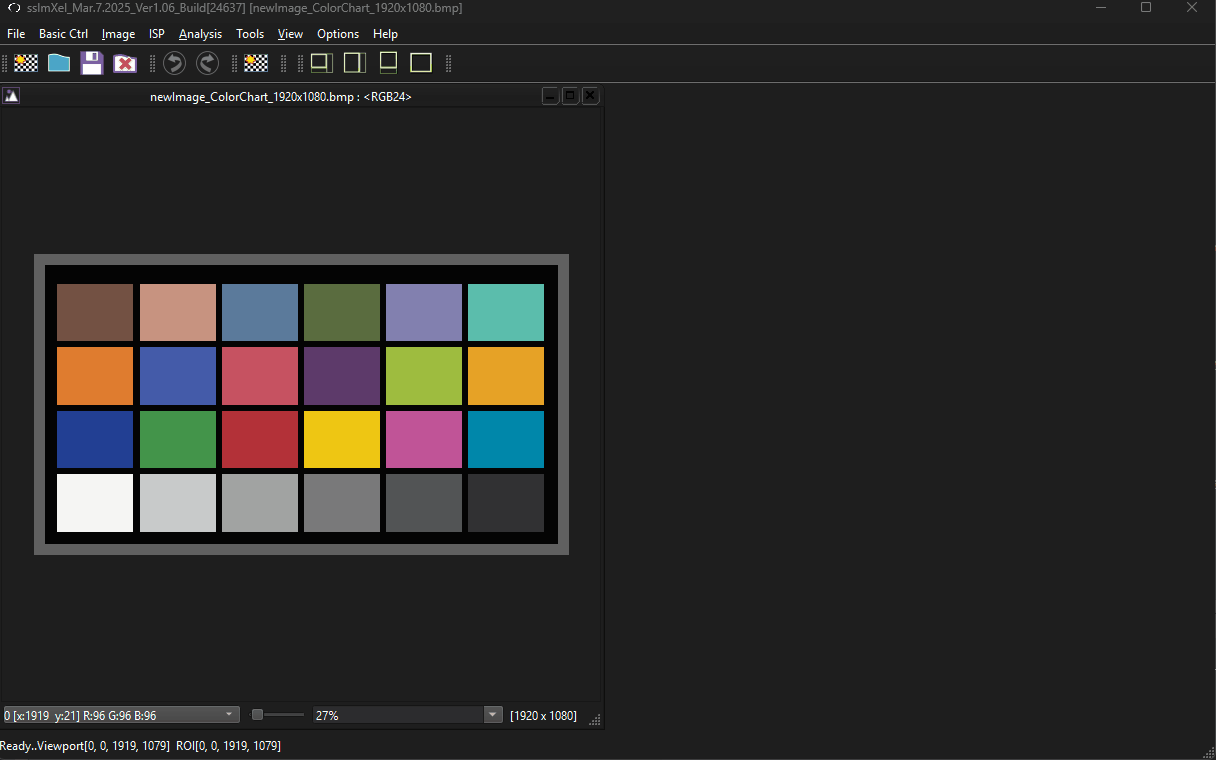

Below demo demonstrates ColorChartAnalysis


.
