Bayer Pattern of the Image

This menu show image's bayer pattern Array and let user can edit pattern array , channel name and each channel associated color SSImXel support up to 64 x 64 array

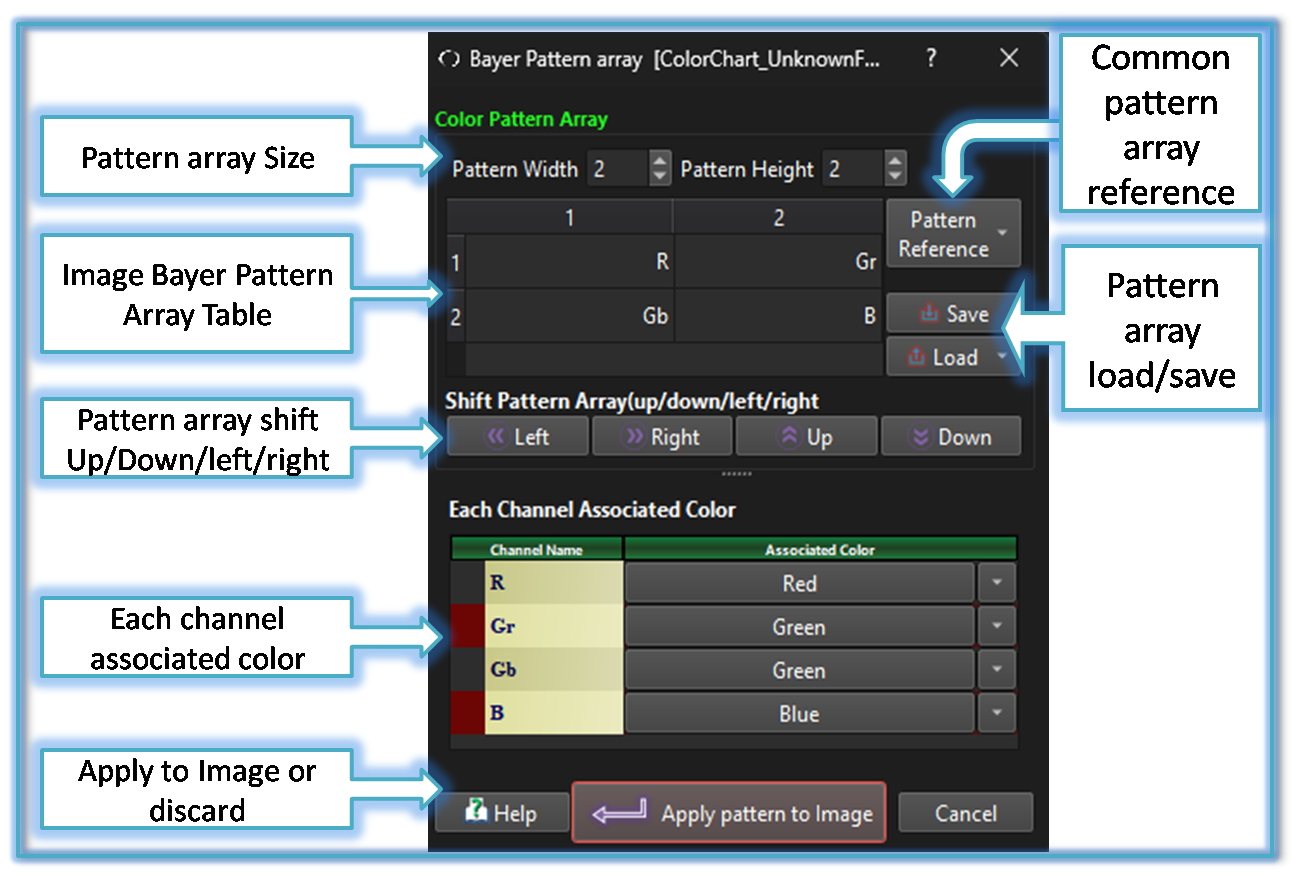

if user click this menu, Pattern array control dialog box will be shown up as shown

Pattern Array size

User configure any size of pattern arrray up to 64x 64

Image Bayer Pattern Array Table

Pattern array shift Up/Down/left/right

Each channel associated color

Common pattern array reference

Pattern array load/save

Apply to Image or discard
