SSImXel enables 3D chart-based analysis of lens shading, allowing users to visually inspect and quantify brightness and color uniformity across the entire image sensor surface.

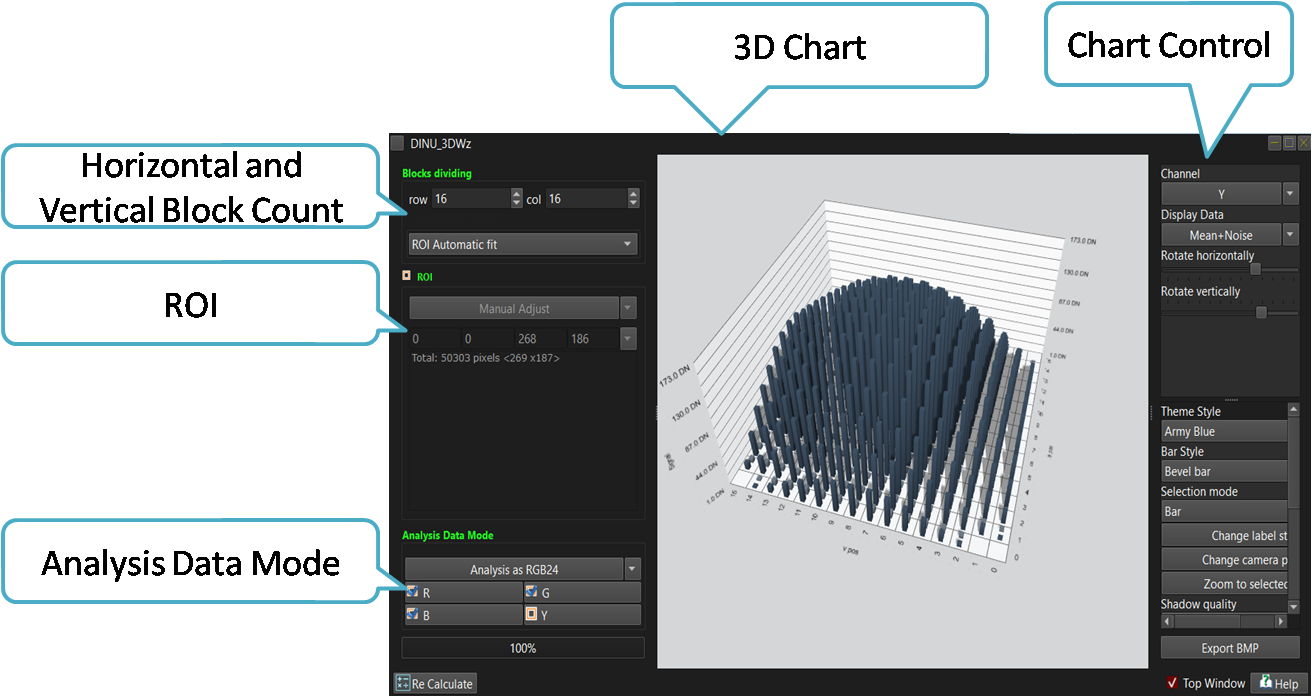

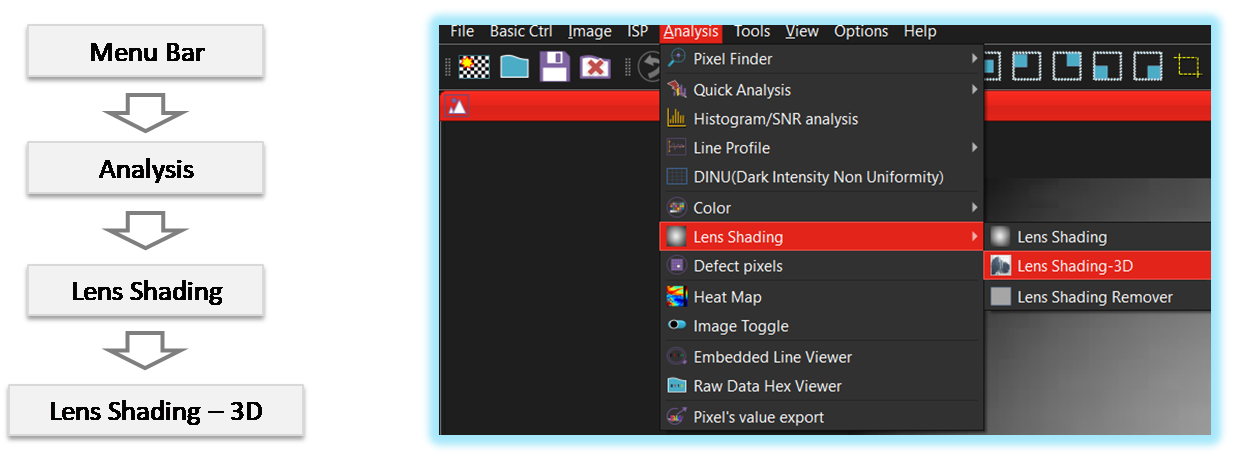

By selecting the menu options in the order shown in the image above or by choosing the toolbar icon , the LensShading_3D dialog box will be showed up as shown in below picture.
For a more detailed explanation of the toolbar button or how to configure toolbar,please refer to configure toolbar

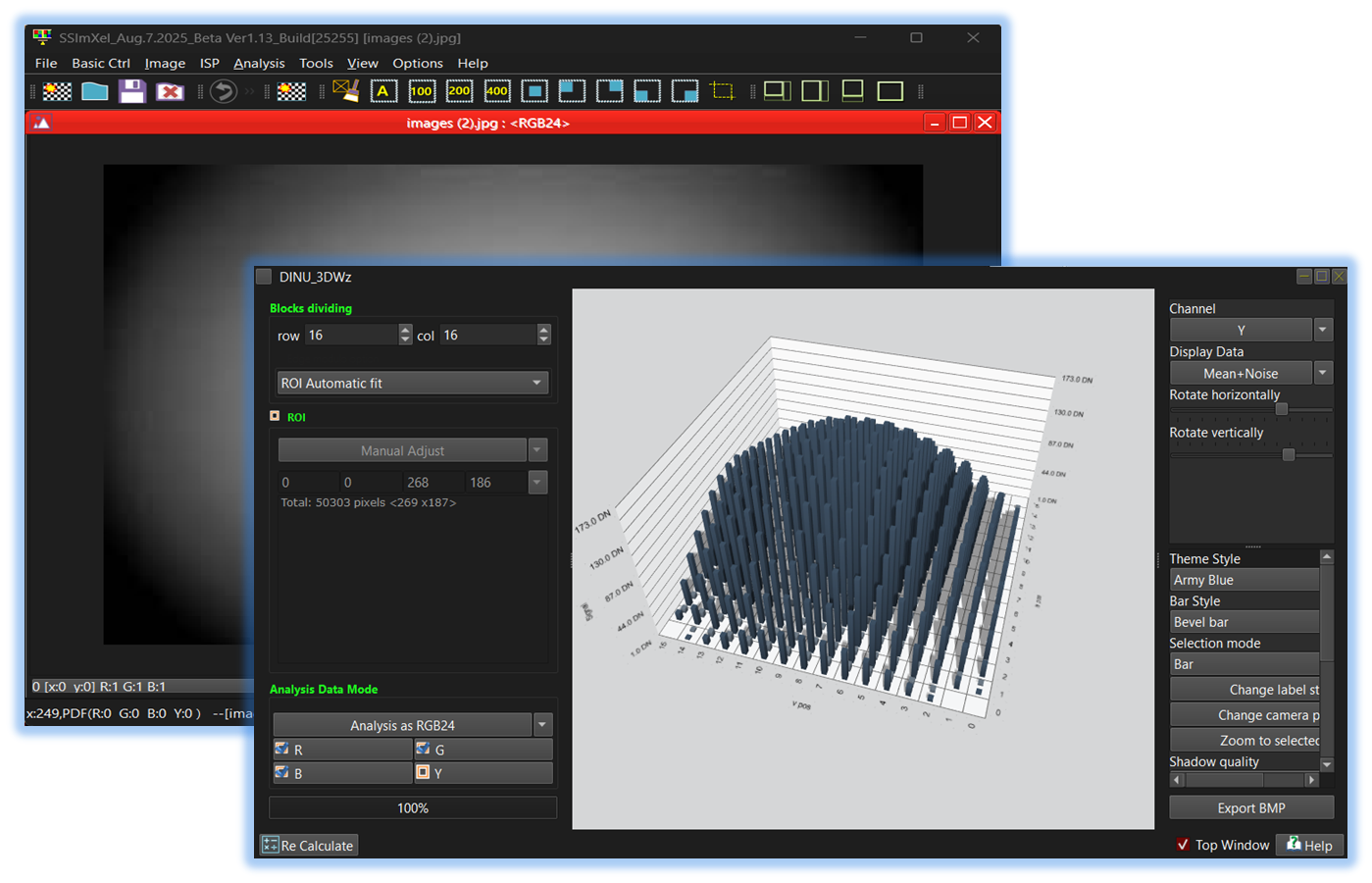

Below demo demonstrates LensShading_3D


.
